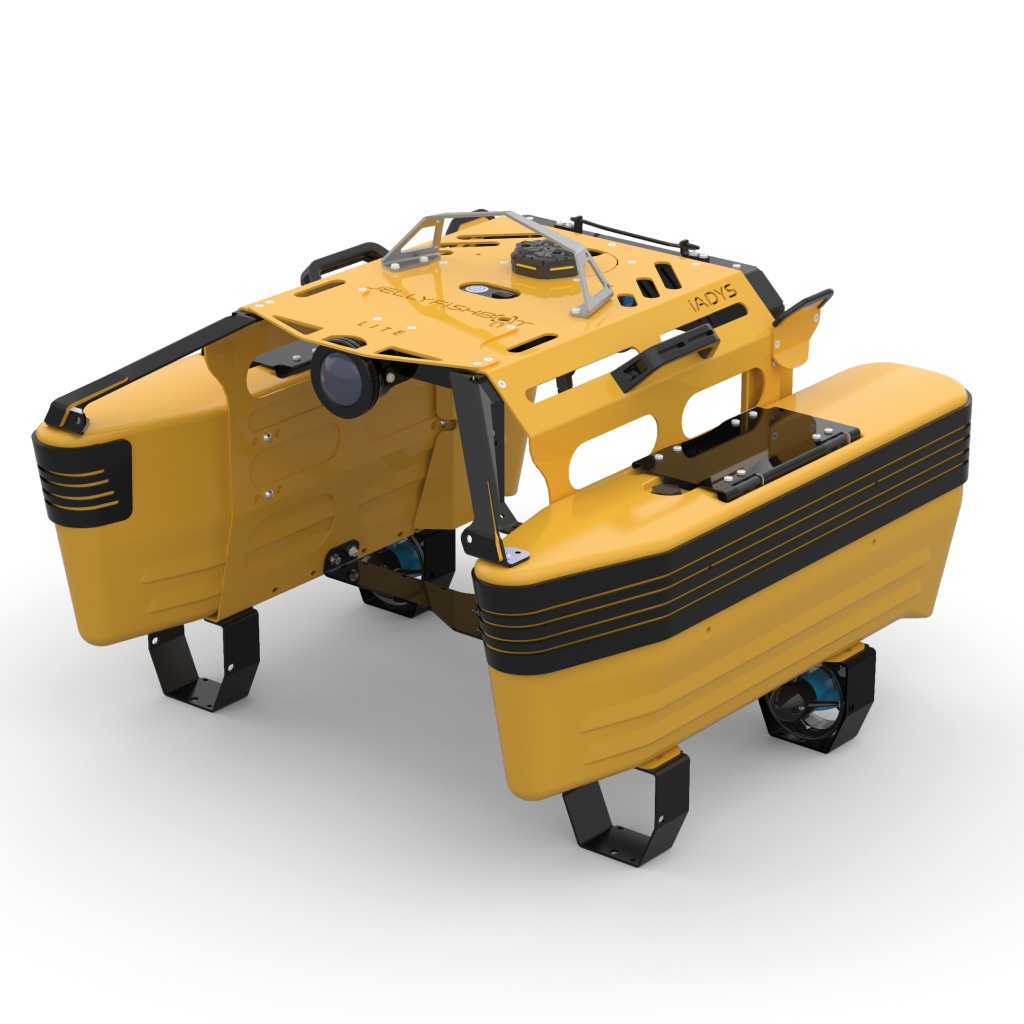

Meet the Jellyfishbot
The Jellyfishbot's features
The Jellyfishbot’s features
Surface Obstacle Avoidance
coverage angle: 270°
max range: 25 m / 82 ft
max range: 25 m / 82 ft
Energy
2 batteries
up to 17 h of autonomy in autonomous mode
2 to 8 h of autonomy in manual mode
recharging time of 3 h 30
up to 17 h of autonomy in autonomous mode
2 to 8 h of autonomy in manual mode
recharging time of 3 h 30
Removable fastening system for
nets, equipments
underwater probes
underwater probes
Thrust
multidirectional (3 thrusters)
forward, backward, sideways moves
rotation on itself
forward, backward, sideways moves
rotation on itself
Onboard camera
1920 x 1080 px (30 fps)
120° horizontal angle
120° horizontal angle
Remote control
500 m of range control
integrated screen with JellyfishApp
integrated screen with JellyfishApp
Underwater Obstacle Avoidance
100°, 6 m / 20 ft
Depth measurement
up to 20 m / 66 ft
Genuine "Swiss Army Knife",
the Jellyfishbot is designed for all
Discover more by clicking on your profile
HARBOURS, WATERWAYS, LAKES
Harbours, waterways, lakes
Harbours, waterways, marinas, yachting, shipyards, commercial ports, river ports, canals, lakes
Show moreAQUATIC TOURISM
Aquatic tourism
Leisure centers, aquariums, amusement parks, castles, hotels residences, golfs
Show moreRESEARCH & ENVIRONMENT AWARENESS
Research institutes & environment awareness
Universities, scientists, private labs, NGO's, foundations, associations
Show more
Précédent
Suivant
HARBOURS, WATERWAYS & LAKES
HARBOURS, WATERWAYS & LAKES
Harbours, waterways, marinas, yachting, shipyards, commercial ports, river ports, canals, lakes
Learn moreThe Jellyfishbot is flexible
Discover the 4 versions available for your Jellyfishbot
Vision
-
Remotely controlled
-
Autonomous by GPS geolocation without obstacle avoidance
-
Surface camera
Horizon
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid surface static obstacles
Abyss
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid underwater static obstacles
IMS subscription for bathymetric surveys up to 20 m – 22 yd depth and generation of seabed mapping
Infinite
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid surface static obstacles
-
Avoid underwater static obstacles
IMS subscription for bathymetric surveys up to 20 m – 22 yd depth and generation of seabed mapping
Précédent
Suivant
Vision
-
Remotely controlled
-
Autonomous by GPS geolocation without obstacle avoidance
-
Surface camera
Horizon
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid surface static obstacles
Abyss
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid underwater static obstacles
Infinite
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid surface static obstacles
-
Avoid underwater static obstacles
IMS subscription for bathymetric surveys up to 20 m – 22 yd depth and generation of seabed mapping
Options
- Underwater camera tilt system
- Beacon, warning lights, buzzer
Accessories
- Trolley
- Reusable or upcycled nets
- Trawls
- Liquid sampling
- Harbo Ultra-rapid boom
- Absorbing materials: booms, spaghetti, leaves
- Mobile oil skimmer
Waste collection accessories
Waste collection accessories
Nets
Macro-waste
Macro-waste
Upcycled
Milli-waste
Micro-waste
Précédent
Suivant
Macro-waste
Macro-waste
Upcycled
Milli-waste
Micro-waste
Oil spill response accessories
Oil spill response accessories
Harbo boom
15 m / 49.2 ft
The Jellyfishbot can be combined with the HARBO Ultra-rapid boom. Its express deployment fits perfectly with the Jellyfishbot’s modularity and quick launch to allow operators to respond as quickly as possible to oil pollution.
Absorbent booms
3 m / 9.8 ft (30-80 L / 8-21 gal)
The Jellyfishbot is able to tow a 3 m boom alone via a towing system, in order to absorb pollution over a larger area.
Leaves
> 1 L / 33 fl oz per leaf
Ideal for treating light iridescence or providing the finishing touches to a cleanup, the polypropylene sheets are attached to the back of the Jellyfishbot, on its frame, individually or as a strip to be deployed over a large area.
Spaghetti
30 L / 8 gal per net
These water-repellent poly-propylene filaments absorb greasy iridescence in a disposable net towed by the Jellyfishbot. Ideal for cleaning up tight, hard-to-reach areas, the net filled with soiled spaghetti is easily detached from the robot to be discarded with the absorbed pollutant.
Absorbent booms
6 m / 19.7 ft (60-165 L / 16-44 gal)
Combined with two robots, 6 or 12 m (19.7 – 39 ft) absorbent booms can be deployed to concentrate and confine an iridescent area to facilitate pollutant recovery.
Anti-pollution trawl
100 L / 26.4 gal
The trawl allows the collection of waste of larger sizes (soiled plants for example) or oil over a large area. It can be towed by a single Jellyfishbot, or ideally by two robots, allowing to adjust the size of the trawl opening.
Harbo boom
15 m / 49.2 ft
The Jellyfishbot can be combined with the HARBO Ultra-rapid boom. Its express deployment fits perfectly with the Jellyfishbot’s modularity and quick launch to allow operators to respond as quickly as possible to oil pollution.
Absorbent booms
3 m / 9.8 ft (30-80 L / 8-21 gal)
The Jellyfishbot is able to tow a 3 m boom alone via a towing system, in order to absorb pollution over a larger area.
Leaves
> 1 L / 33 fl oz per leaf
Ideal for treating light iridescence or providing the finishing touches to a cleanup, the polypropylene sheets are attached to the back of the Jellyfishbot, on its frame, individually or as a strip to be deployed over a large area.
Spaghetti
30 L / 8 gal per net
These water-repellent poly-propylene filaments absorb greasy iridescence in a disposable net towed by the Jellyfishbot. Ideal for cleaning up tight, hard-to-reach areas, the net filled with soiled spaghetti is easily detached from the robot to be discarded with the absorbed pollutant.
Absorbent booms
6 m / 19.7 ft (60-165 L / 16-44 gal)
Combined with two robots, 6 or 12 m (19.7 – 39 ft) absorbent booms can be deployed to concentrate and confine an iridescent area to facilitate pollutant recovery.
Anti-pollution trawl
100 L / 26.4 gal
The trawl allows the collection of waste of larger sizes (soiled plants for example) or oil over a large area. It can be towed by a single Jellyfishbot, or ideally by two robots, allowing to adjust the size of the trawl opening.
Précédent
Suivant
Trolley
Trolley
In some cases when the access to the water is difficult you may want to use our transportation trolley for launching and recovering your Jellyfishbot. It’s a way to reduce also the musculoskeletal disorders.
Looking for something else?
The Jellyfishbot Expert range is designed for Industrial and Antipollution markets. Discover this new range!
