Meet the Jellyfishbot Expert
Jellyfishbot Expert features
Jellyfishbot Expert features
Reinforced & enlarged hanging point
Reinforced net frame & high strenght nets
Reinforced & enlarged frame guide
Red color
mass-colored floats
with anti-Uv treatment
with anti-Uv treatment
Surface Obstacle Avoidance
coverage angle: 270°
max range: 25 m / 82 ft
max range: 25 m / 82 ft
Depth measurement
up to 20 m / 66 ft
Rugged & waterproof remote control
up to 1 km / 0.6 mi of range control
increased display brightness
IP67 waterproof
increased display brightness
IP67 waterproof
Underwater Obstacle Avoidance
100°, 6 m / 20 ft
Energy
2 batteries
up to 17 h of autonomy in autonomous mode
2 to 8 h of autonomy in manual mode
recharging time of 3 h 30
up to 17 h of autonomy in autonomous mode
2 to 8 h of autonomy in manual mode
recharging time of 3 h 30
Safety
rugged & compact strobe light
warning signal
warning signal
Thrust
multidirectional (3 thrusters)
forward, backward, sideways moves
rotation on itself
forward, backward, sideways moves
rotation on itself
LED projectors
for inpections in darkness
Dimensions
70 x 70 x 58 cm
2.3 x 2.3 x 1.9 ft
2.3 x 2.3 x 1.9 ft
Weight
20 kg / 44 lb
Materials
polyethylene and aluminium alloy
Connectivity
WiFi, Bluetooth
5G, GPS
5G, GPS
Covered area
1 000 m²/h
10 764 sq ft
10 764 sq ft
Onboard camera
1920 x 1080 px (30 fps)
120° horizontal angle
120° horizontal angle
Speed
1 knot (optimal)
2 knots (max)
2 knots (max)
Designed for Oil Spill Response & Industry
Discover more by clicking on your profile
OIL SPILL RESPONSE
OIL SPILL RESPONSE
Navy, coast guards, firefighters, oil companies, anti-pollution services
Learn moreINDUSTRY
INDUSTRY
Plastic and petrochemical industries, marine & civil works, distribution channels, dams, fish farming, water treatment plants, power plants
Learn more
Précédent
Suivant
The Jellyfishbot Expert is flexible
Discover the 2 versions available for your Jellyfishbot Expert
Jellyfishbot Expert
-
Remotely controlled
-
Autonomous by GPS geolocation without obstacle avoidance
-
Surface camera
Jellyfishbot Expert +
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid surface static obstacles
-
Avoid underwater static obstacles
-
IMS subscription
IMS subscription for bathymetric surveys up to 20 m – 22 yd depth and generation of seabed mapping
Précédent
Suivant
Jellyfishbot Expert
-
Remotely controlled
-
Autonomous by GPS geolocation without obstacle avoidance
-
Surface camera
Jellyfishbot Expert +
-
Remotely controlled
-
Autonomous by GPS geolocation
-
Surface camera
-
Avoid surface static obstacles
-
Avoid underwater static obstacles
IMS subscription for bathymetric surveys up to 20 m – 22 yd depth and generation of seabed mapping
Accessories
- Trolley
- Reusable or upcycled nets
- Trawls
- Liquid sampling
- Harbo Ultra-rapid boom
- Absorbing materials: booms, spaghetti, leaves
- Mobile oil skimmer
Oil spill response accessories
Oil spill response accessories
Harbo boom
15 m / 49.2 ft
The Jellyfishbot can be combined with the HARBO Ultra-rapid boom. Its express deployment fits perfectly with the Jellyfishbot’s modularity and quick launch to allow operators to respond as quickly as possible to oil pollution.
Absorbent booms
3 m / 9.8 ft (30-80 L / 8-21 gal)
The Jellyfishbot is able to tow a 3 m boom alone via a towing system, in order to absorb pollution over a larger area.
Leaves
> 1 L / 33 fl oz per leaf
Ideal for treating light iridescence or providing the finishing touches to a cleanup, the polypropylene sheets are attached to the back of the Jellyfishbot, on its frame, individually or as a strip to be deployed over a large area.
Spaghetti
30 L / 8 gal per net
These water-repellent poly-propylene filaments absorb greasy iridescence in a disposable net towed by the Jellyfishbot. Ideal for cleaning up tight, hard-to-reach areas, the net filled with soiled spaghetti is easily detached from the robot to be discarded with the absorbed pollutant.
Absorbent booms
6 m / 19.7 ft (60-165 L / 16-44 gal)

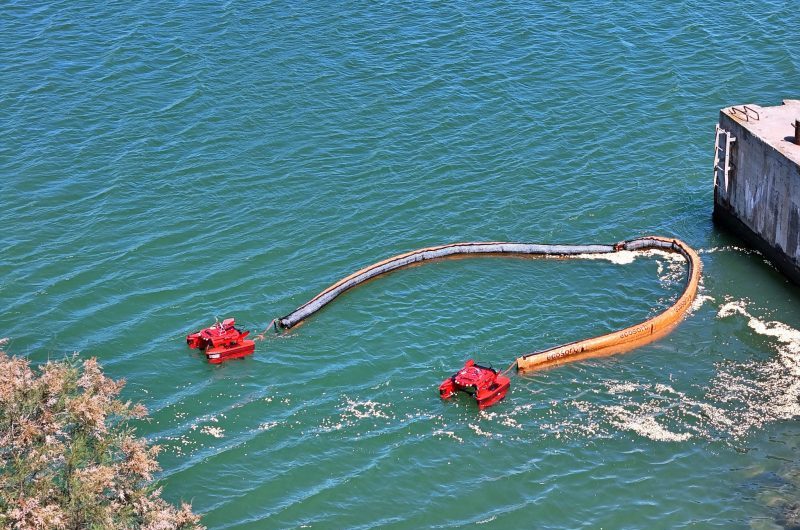

Combined with two robots, 6 or 12 m (19.7 – 39 ft) absorbent booms can be deployed to concentrate and confine an iridescent area to facilitate pollutant recovery.
Anti-pollution trawl
100 L / 26.4 gal
The trawl allows the collection of waste of larger sizes (soiled plants for example) or oil over a large area. It can be towed by a single Jellyfishbot, or ideally by two robots, allowing to adjust the size of the trawl opening.
Absorbent booms
3 m / 9.8 ft (30-80 L / 8-21 gal)
The Jellyfishbot is able to tow a 3 m boom alone via a towing system, in order to absorb pollution over a larger area.
Leaves
> 1 L / 33 fl oz per leaf
Ideal for treating light iridescence or providing the finishing touches to a cleanup, the polypropylene sheets are attached to the back of the Jellyfishbot, on its frame, individually or as a strip to be deployed over a large area.
Spaghetti
30 L / 8 gal per net
These water-repellent poly-propylene filaments absorb greasy iridescence in a disposable net towed by the Jellyfishbot. Ideal for cleaning up tight, hard-to-reach areas, the net filled with soiled spaghetti is easily detached from the robot to be discarded with the absorbed pollutant.
Absorbent booms
6 m / 19.7 ft (60-165 L / 16-44 gal)
Combined with two robots, 6 or 12 m (19.7 – 39 ft) absorbent booms can be deployed to concentrate and confine an iridescent area to facilitate pollutant recovery.
Anti-pollution trawl
100 L / 26.4 gal
The trawl allows the collection of waste of larger sizes (soiled plants for example) or oil over a large area. It can be towed by a single Jellyfishbot, or ideally by two robots, allowing to adjust the size of the trawl opening.
Précédent
Suivant
Waste collection accessories
Waste collection accessories
Nets
Macro-waste
Macro-waste
Upcycled
Milli-waste
Micro-waste
Macro-waste
Macro-waste
Upcycled
Milli-waste
Micro-waste
Précédent
Suivant
Trolley
Trolley
In some cases when the access to the water is difficult you may want to use our transportation trolley for launching and recovering your Jellyfishbot. It’s a way to reduce also the musculoskeletal disorders.
Looking for something else?
The Mobile Oil Skimmer is designed for the Antipollution market. Discover this new range!
